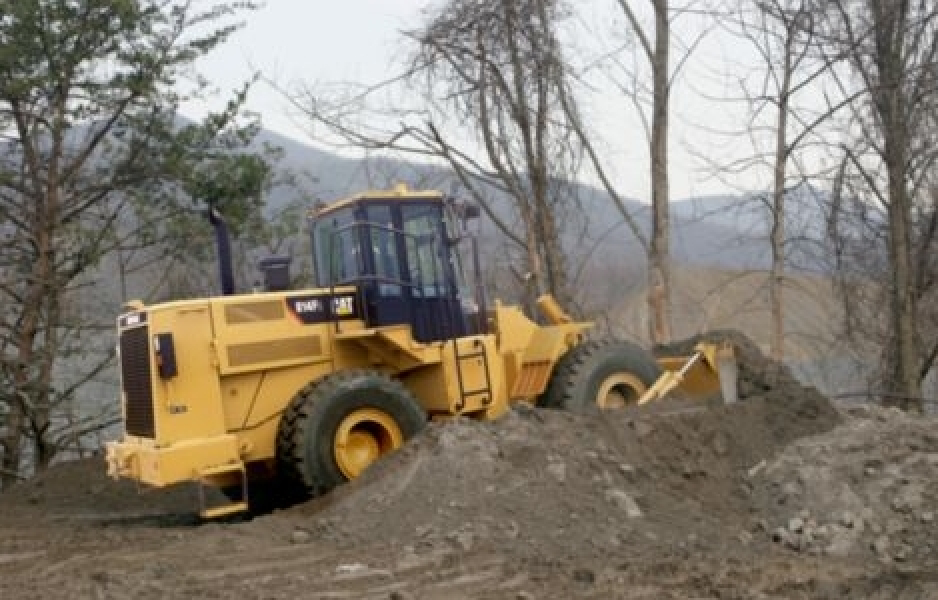

Spesifikasi dozers 814 f series
Engine
| Engine Model | Cat® C9 ACERT™ |
| Net Power | 173 kW |
| Flywheel Power | 173 kW |
| Gross Power | 189 kW |
| Net Power - EEC 80/1269 | 175 kW |
| Net Power - ISO 9249 | 175 kW |
| Net Power - SAE J1349 (JAN90) | 173 kW |
| Bore | 112 mm |
| Stroke | 149 mm |
| Displacement | 8.8 l |
| Torque Rise | 30 % |
| Cylinders | 6 |
Transmission
| Number of Forward Speeds | 4 |
| Number of Reverse Speeds | 4 |
| Forward - 1 | 5.7 km/h |
| Forward - 2 | 10.2 km/h |
| Forward - 3 | 17.9 km/h |
| Forward - 4 | 31 km/h |
| Reverse - 1 | 6.5 km/h |
| Reverse - 2 | 11.6 km/h |
| Reverse - 3 | 20.4 km/h |
| Reverse - 4 | 34.9 km/h |
Hydraulic system
| Lift Cylinder, Bore and Stroke | 120.62 mm x 913.9 mm 4.74 in x 35.98 in |
| Steering Cylinder, Bore and Stroke | 101.6 mm x 597 mm 3.99 in x 23.5 in |
| Relief Valve Setting | 15500 kPa |
Brakes
| Brakes | Meet OSHA regulations |
Axles
| Front | Fixed |
| Rear | Oscillating ±12 |
|
Steering |
|
| Steering Angle | ±36° |
| Turning Radius - Outside Corner of Blade | 7168 mm |
| Turning Radius - Inside Corner of Blade | 3727 mm |
Tire
| Standard Tire Size | 26.5 R25 XHA MX L3 |
| Tires | L3 rock tread |
Weigh
| Operating Weight | 21713 kg |
Service refill capacities
| Fuel Tank - Standard | 446 l |
| Coolin g System | 55 l |
| Crankcase | 34 l |
| Transmission | 50 l |
| Hydraulic Tank | 88 l |
| Differential - Final Drives - Front | 65 l |
| Differential - Final Drives - Rear | 65 |
Cab
| Cab | Meets SAE and ISO standards |
| ROPS/FOPS | Standard |
Operating Specification
| Turning Circle - With Blade | 1433.6 m |
| Ground Clearance | 366 mm |
Sound Equipment
| Standards Meet required standards |
| |||||||||||||||||||||||||
| Blade Capacities
|
