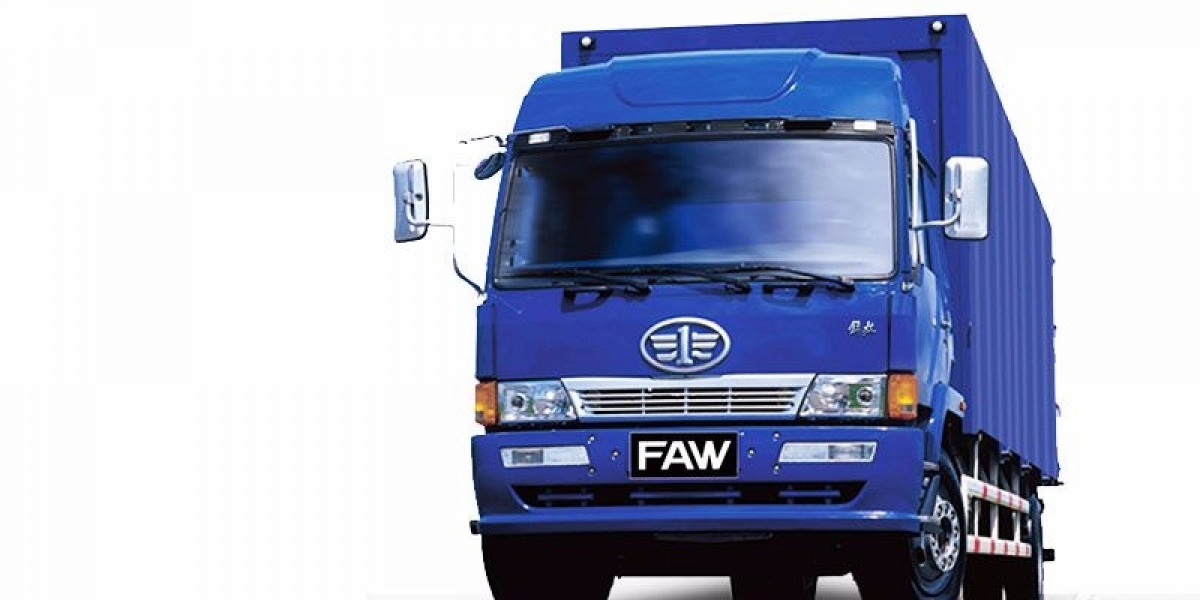

Spesifikasi Truk FAW CA5167XXYP11K2L7

Spesifikasi Truk FAW CA5167XXYP11K2L7

Clutch
--Dry single Φ380mm plate
--Diaphragm spring
--Hydraulic control with air assist
--Non-asbestos composite friction material

Transmission
--FAW CA6T138 mechanical transmission, 6 forward speeds and 1 reverse
--Ratios: 1st 7.285, 2nd 4.193, 3rd 2.485, 4th 1.563, 5th 1.000, 6th 0.82, Rev. 6.777

Front axle
--Drop forged "I" beam, rear mounted tie rod
--Rated axle capacity: 6000 kg
--Integral power steering, tilt and telescopic steering column
--Suspension: semi-elliptic multi-leaf springs with Φ50mm telescopic double acting shock
   absorbers
--7.50V-20 steel disc wheels and 10.00-20-16PR tires (Single, bias tube-type)

Rear axle
--?420 cast axle, 5.833 ratio, full-floating
--Rated axle capacity: 12000 kg
--Suspension: semi-elliptic multi-leaf springs with auxiliary springs
--7.50V-20 steel disc wheels and 10.00-20-16PR tires (Dual, bias tube-type)

Brake
--Front and rear dual-circuit independent air brake system with air dryer
--Reservoirs: one 20L steel reservoir and one 40L steel reservoir
--Service brakes: air actuated, drum type, brake drum inner diameter: 400mm
--Brake shoe width: front 100mm, rear 150mm
--Parking brake: pneumatically controlled spring brakes, operated by manually actuated
   valve in conjunction with quick release valve, acting on rear wheels
--Exhaust brake: electrically controlled, pneumatically activated butterfly valve in exhaust pipe

Frame
--Ladder type, channel section side rails
--Cross section dimensions: 280×90×8mm(with 5mm inner reinforcement)
--Assembled width: 865mm in the front and rear

Cab
--Model FM all steel welded COE (cab over engine) design, high roof with double bunk and
   sunroof, fully insulated mounting, 44 degree tilt with torsion bar assistance and safety latch
--Cab glass: laminated windshield and tempered side & rear windows
--Windshield wipers: 3-blade, electric-driven, 2 speed & intermittent
--Driver seat: Height, position & seat back angle adjustable with helical suspension cloth with
   head rest
--Passenger seat: back angle adjustable with helical spring, cloth with high back
--Seat Belts: driver & passenger, 3-point type
--AM/FM stereo radio with cassette
--Meters & Gauges: Speedometer, tachometer, coolant temperature gauge air pressure gauge
--Warning Lights & Buzzers: Cab lock warning light & buzzer Low coolant level warning
   light &  buzzer Low oil pressure warning light & buzzer Low air pressure warning
   light & buzzer Parking brake indicator light

Electrical system
--24 Volt, negative ground system
--Battery: 6-QAW-120D, capacity: 2×120A.h
--Combination halogen headlamps/marker lamps
--Combination stop, tail and back-up lamps with reflector

Weights (kg)
--Curb weight: 7980
--Front axle curb weight: 3450
--Rear axle curb weight: 4530
--Load capacity: 10000

Dimensions (mm)
--Overall dimensions (length × width × height): 10000×2490×3810
--Body inner dimensions (length × width × height): 7600×2300×2400
--Track (front/rear): 1914/1847
--Wheelbase: 5670
--Front overhang: 1255
--Back of cab to rear axle center: 4895
--Rear axle center to end of frame: 2835

Performance
--Top speed: 92km/h
--Fuel consumption at 80km/h with full load: 20L/100k
--Min. turning radius: 10m
--Max. outside noise level under acceleration: 84dB(A)
--Min. ground clearance: 250mm

Spesifikasi di atas dicuplik dari web site chinatrucks, mungkin ada beberapa perbedaan dengan kondisi yang aslinya.
