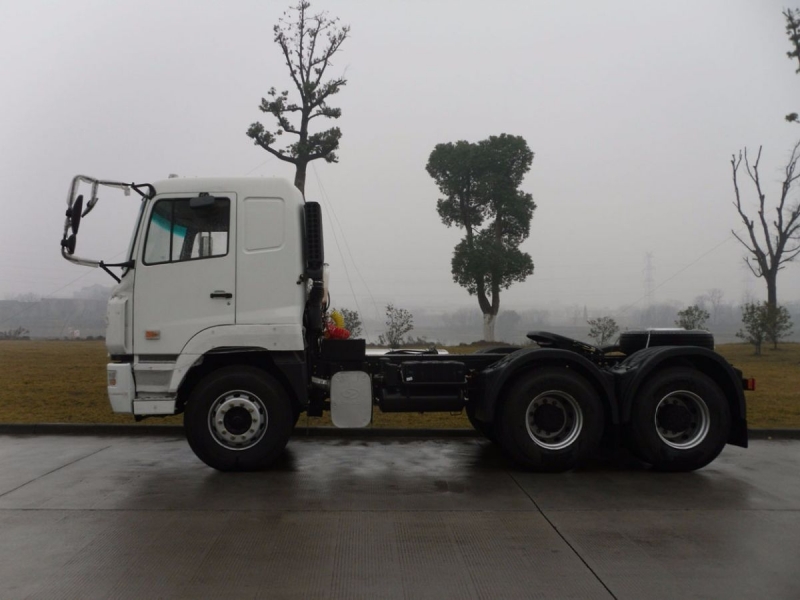

berikut adalah Spesifikasi Truk CAMC 6x4 Sandard Model tractor truck

Product Name		Tractor Truck
Product Model		HN4250G38CLM/HN4250P28C2M
Manufacturer		Anhui Hualing Automobile Co.,Ltd
Place of Origin		Maan shan, Anhui, China
Kerb mass		8.8ton
Rated Payload		40ton
Drive Type		Left-Hand(optional RHD)
Drive Model		6×4
Vehicle Body Color		White(optional)
Overall Dimension (L x W x H)mm		6750x2495x3100(3560 for High-roof cabin)
Engine	Brand	CUMMINS
	Model	L375 20/C300 20
	Max. Power (kw/r/min)	273/2200
	Displacement	8900ml/8300ml
	Emission Standard	Euro II
Clutch	Model	Φ430 diaphragm spring
Transmission	Brand	FAST GEAR
	Model	12JS160T (12-speed & 2-reverse)
	Type	twin countershaft; all synchronizer
The Number of Axles		3
Rear Axle(drive axle)-Model		13T
Front Axle-Model		7.5T
Cabin type		European style Flat roof(optional CF,CH,EH)
Cabin		With A/C, Radio, Bunk
Brake System		Full air brake with exhaust brake (optional ABS)
Steering System		HITACHI
Wheelbase (mm)		3200+1350
Wheel/Tire	Type	Radial tube(Option: Nylon/Radial tubeless)
	Model(optional)	12.00R20(Options:11.00-20/11.00R20/11R22.5 12.00-20/12R22.5/13R22.5)
	Tire number	10+1
Fuel Tank	Volume(L)	380 (optional 500L)
The fifth wheel (Saddle)		JOST 50# /2 inches ;(optional 90#/3.5inches)
The working platform		With
Diversion cover		Optional
Front overhang/Rear overhang(mm)		1370/1020
Approach/Departure Angle(°)		24/23
No. of steel spring(front/rear)		9/12
Max. Speed (km/h)		90
